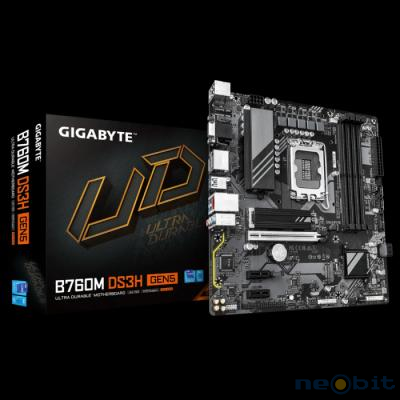

| GIGABYTE B760M DS3H GEN5, DDR5, SATA3, USB3.2Gen2, DP, LGA1700 mATX |
| Cena: 113,14 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | B760M DS3H GEN5 * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
|
PODNOŽJE: INTEL LGA 1700ZA PROCESORJE: 14/13/12 Generation Core i7/i5/i3/Pentium/CeleronFORMAT: micro ATX format 24.4 cm x 24.4 cmVEZNI ČIP: INTEL B760POMNILNIK:4 x DDR5 DIMM ECC/non-ECC 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400MHz) do skupno 256GB kapacitete, dual channel in XMP podporaGRAFIKA: DA - preko CPURAID: RAID 0, RAID 1, RAID 5, and RAID 10 podpora SATA storageRAZŠIRITVENE REŽE:CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16The PCIEX16 slot can only support a graphics card or an NVMe SSDChipset:- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1MREŽNA KARTICA: Realtek 2.5GbE LAN chipZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)NOTRANJI PRIKLJUČKI:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperZUNANJI PRIKLJUČKI:2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port (Note)1 x HDMI port (Note)2 x DisplayPorts (Note)3 x USB 3.2 Gen 1 ports1 x USB Type-C port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksDODATNO:iTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlBIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton Internet Security (OEM version)Uradna stran proizvajalca: https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5#kf |
 |
|
|
|
